For beverage makers and foodservice operators, two levers drive profitable growth: more days of saleable freshness and lower cost per liter delivered. Bag-in-Box (BiB)—a collapsible, oxygen-barrier bag with a hygienic tap housed in a protective carton—does both remarkably well for juices and dairy. Long a staple in post-mix soda and boxed wine, BiB is now mainstream for cafés, hotels, schools, institutional kitchens, and direct-to-consumer subscriptions where freshness, hygiene, and logistics matter.

This guide explains how BiB extends shelf life, where the real cost savings come from, the processing options (hot-fill, aseptic, ESL, HPP), and how to implement BiB without compromising flavor or food safety.

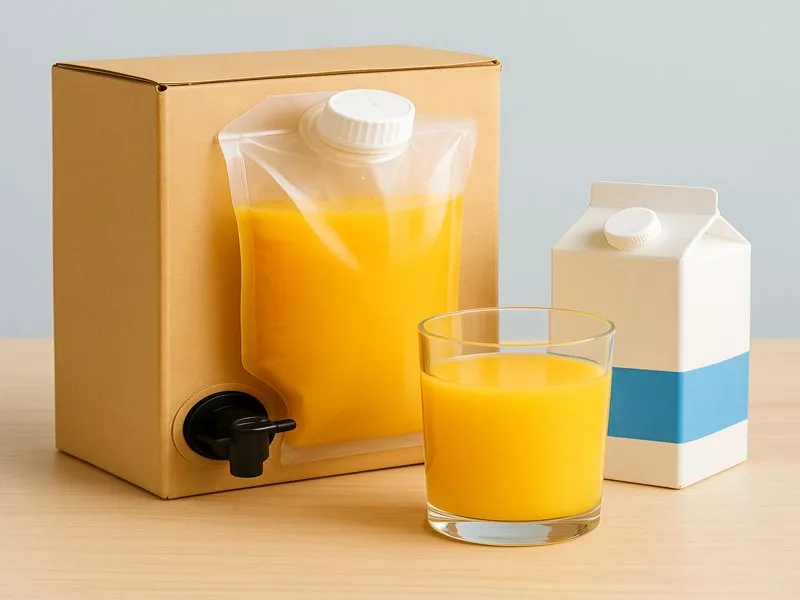

What Is Bag-in-Box and Why It Works

A typical BiB system has three parts:

• Inner bag – Multilayer, food-grade film (often PE with an EVOH oxygen-barrier layer). The bag collapses as product dispenses, so air does not glug back in.
• Fitment/tap – A push-button or quarter-turn spigot (e.g., Vitop-style) or a sanitary quick-connect used with dispensers. Designed to be leak-resistant and tamper-evident.
• Outer carton – Rigid, recyclable paperboard that shields the bag from light and impact, stacks efficiently, and doubles as the serving station.

The magic is the one-way flow: product exits, the bag shrinks, and oxygen exposure is minimized. Combined with a light-blocking carton, BiB slows both oxidation (key for juices and dairy fats) and light-induced off-flavors (notoriously in milk).

Shelf-Life: Why BiB Helps Juice and Dairy

Shelf life in juice and dairy is limited by microbial growth (managed by pasteurization/aseptic/HPP) and chemical degradation (oxidation, light). BiB improves the latter and supports the former.

1) Reduced Oxygen Pickup

• The inner bag’s oxygen transmission rate (OTR) is far lower than that of many commodity bottles.
• Because the bag collapses, no headspace refresh occurs with each pour—critical for vitamin-C-rich juices and cold-pressed blends.

2) Light Protection

The carton blocks UV and visible light, reducing color fade and “light-struck” flavors (riboflavin-catalyzed oxidation in milk). This is a common weakness of transparent bottles.

3) Hygienic Dispensing

Taps are engineered to prevent backflow and protect the product side from touch contamination—important in schools or self-serve breakfast bars.

4) Temperature Stability

Rectangular cartons pack densely, so the product chills evenly and stays cold longer in service, supporting ≤5 °C (≤41 °F)hold targets.

Reality check: Exact life depends on formulation, microbial load, fill technology, film spec, and temperature control. Always run validation studies for your product and market regulations.

Indicative Shelf-Life Ranges (Unopened / Opened, Chilled)

Product & Process	Typical Retail Bottle/Jug	In Bag-in-Box (comparable process)
Pasteurized orange or apple juice	7–14 days / 3–5 days after open	21–30 days / 7–14 days after open
NFC cold-pressed juice (HPP)	30–45 days / 5–7 days after open	45–60+ days / 10–14 days after open
ESL microfiltered milk (chilled)	14–21 days / 5–7 days after open	21–30 days / 10–14 days after open
UHT dairy (ambient until opened)	6–9 months / 5–7 days after open	6–9 months / 10–14 days after open



Cost Savings: Where BiB Cuts the Bill

BiB isn’t just a packaging swap; it rewires your unit economics.

1) Packaging Cost per Liter

A 10 L BiB typically uses far less material than 10 × 1 L bottles (no caps, labels, sleeves, or rigid walls), driving down cost per liter.

2) Freight and Storage

• Cube efficiency: Rectangular cartons fill pallets and trucks with a higher product-to-air ratio.
• Weight: Less packaging mass per liter reduces freight cost and handling strain.
• Cold storage density: More liters per shelf equals lower $ per pallet-day.

3) Labor & Service Speed

• One 10 L changeover equals ten 1 L swaps you no longer do.
• Self-serve taps reduce staff time at front-of-house beverage stations.

4) Waste Reduction

• BiB’s extended open life lowers spoilage.
• The collapsing bag yields near-total evacuation, cutting “unpourable” leftovers common in rigid bottles.

5) Equipment Synergy

With post-mix juice/dairy bases (concentrate + water at dispense), BiB produces massive logistics savings—shipping flavor, not water.

Example: Cost Snapshot (Illustrative)

Cost Element (per 10 L served)	10 × 1 L Bottles	1 × 10 L BiB
Primary packaging	$4.50	$2.20
Secondary/tertiary	$0.90	$0.40
Inbound freight	$2.30	$1.40
Cold storage (pallet-day)	$0.80	$0.50
Disposal/handling	$0.60	$0.25
Total est. packaging+logistics	$9.10	$4.75

Illustrative only; plug in your rates for precision. The pattern—fewer components, better cube, less waste—drives most savings

Which Process Fits: Hot-Fill, ESL, Aseptic, HPP

BiB is a platform that pairs with multiple processes:

Hot-Fill (Juice)

• Product enters BiB at ~85–92 °C, sterilizing contact surfaces.
• Suited to acid juices (pH ≤ 4.2).
• Choose heat-resistant films; manage cooling to avoid vacuum collapse beyond spec.

ESL (Extended Shelf Life Dairy)

• Microfiltration + high-temp short-time pasteurization, rapid chilling, ultra-clean filling.
• Requires sanitary fitments, strict hygiene, and cold chain discipline.

Aseptic Packaging (Juice & Dairy)

• Product and packaging are sterilized individually, then combined within a sterile environment.
• Enables ambient-temperature distribution until opening (UHT milk, shelf-stable juices).
• Needs validated sterile fitments and caps; often used with quick-connect dispensers.

HPP (Juice)

• Filled and sealed BiB passes through a high-pressure water chamber (~600 MPa).
• Extends the life of cold-pressed NFC juices with minimal heat impact.
• Ensure the bag, seals, and tap are HPP-compatible.

Tip: Align fitment geometry with your dispenser (gravity tap, countertop chiller, bag-squeezer, or post-mix system). For dairy, prefer enclosed sanitary connectors over open taps where possible.

Film & Fitment: What to Specify

• Barrier: EVOH layer thickness matched to expected life and distribution (higher barrier for vitamin-C juices; strong light block for milk).
• Seal strength: Drop and compression resistance for warehouse handling.
• Tap: Leak-proof, positive closure; for dairy, consider closed-coupled systems to avoid touch contamination.
• Carton: Wet-strength coatings for refrigerated condensation; printing for orientation and quick flavor ID.

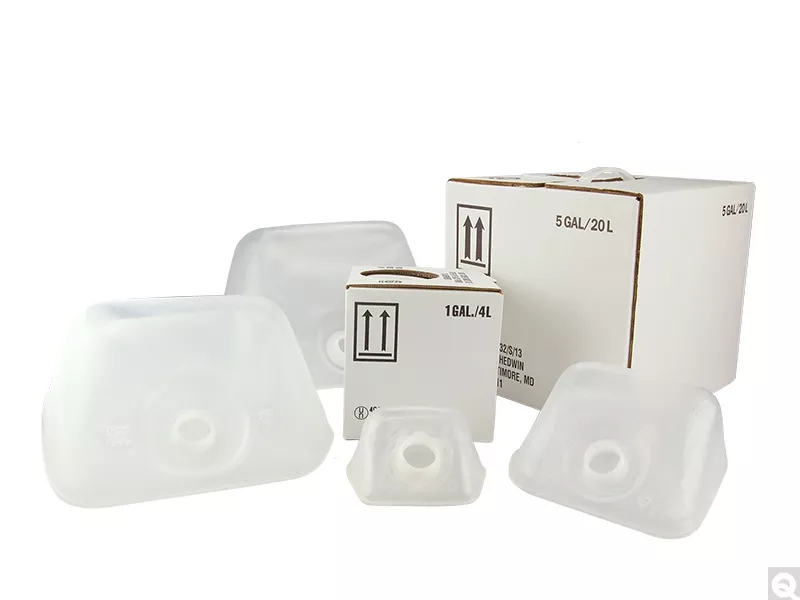

• Sizes: 3 L/5 L for variety; 10 L/20 L for back-of-house economics.

Food Safety & Quality Management

• HACCP: Treat the fitment area as a critical control point; validate cleaning, fill temps, and closure integrity.
• CIP/SIP (for connected dispensers): Maintain routine cycles and document verification.
• Cold chain: Hold at ≤5 °C (≤41 °F) for pasteurized/ESL/HPP; ambient allowed for UHT until opening.
• Rotation: Use FIFO; date-code outer cartons.
• Tap hygiene: Assign drip trays, wipe taps daily (alcohol wipes), and replace bags at the first sign of damage.

Implementation Playbook (Pilot → Scale)

Define the objective

• Shelf-life extension target (e.g., +10 days)
• Cost KPI (¢/L savings) and waste KPI (% spoilage)

Select format & process

10 L hot-fill juice? 5 L HPP cold-pressed? 20 L of aseptic milk for cafeterias?

Lab & line trials

• Verify barrier spec, seal integrity, drop/pressure tests, and tap torque/flow.
• Conduct abuse testing (temperature excursions, rough handling).

Shelf-life study

• Micro, chemical (ascorbic acid retention, peroxide value), sensory over time at target temps.
• Compare against 1 L retail packaging to quantify gains.

Dispense integration

• Match fitment to gravity trolleys or refrigerated countertop dispensers; train staff.
• For dairy, prefer closed tubing to limit exposure.

SOP & training

• Receiving, storage, opening, tap sanitation, changeovers, and end-of-life recycling.
• Visual work instructions at the station (icons for fast adoption).

Scale & audit

• Lock specifications, audit fills, and incoming QC.
• Track KPIs: freshness complaints down, waste down, labor minutes per liter down.

Sustainability Considerations

• Lower packaging mass per liter vs bottles/jugs; fewer truckloads for the same volume.
• Cartons are widely recyclable; inner bags/taps may require store drop-off or specialty programs.
• Extended freshness means less product waste, which is a major sustainability win.
• In post-mix systems, concentrates in BiB slash transport emissions further.

Final Take

For juice and dairy, Bag-in-Box aligns technical performance with business reality:

• Longer freshness after opening through oxygen control and light blocking.
• Lower total delivered cost via cube efficiency, reduced packaging, quicker service, and less waste.
• Flexible processing—hot-fill, ESL, aseptic, HPP—without changing the consumer experience at the glass.
• Scalable operations with fewer changeovers and simpler inventory.

If you’re ready to trial BiB, start with a 10 L format in your highest-velocity SKU, pair it with an appropriate tap or closed connector, and run a side-by-side shelf-life and cost study for four weeks. In most cases, the data speaks for itself: more days of great-tasting product, fewer dollars tied up in packaging and waste.
